The following is a list along with photographs and specifications of various types of containers that are used in the containerized cargo movement business. The dimensions listed below are intended as a guide only. There are differences in the dimensions between containers produced by various manufacturers.

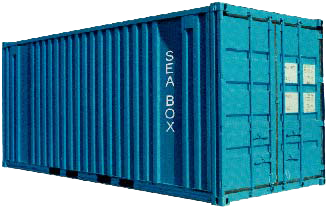

DIMENSION AND CAPACITY INFORMATION FOR MOSTLY USED CONTAINER SIZES| 20 ft. Conventional End Opening Container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Height | Width | Door Opening | Tare | Volumetric | Maximum | ||||
| Inside | Outside | Inside | Outside | Inside | Outside | Height | Width | Weight | Capacity | Cargo |
| 19' 4" | 20' 0" | 7' 10" | 8' 6" | 7' 8" | 8' 0" | 7' 6" | 7' 8" | 4900 lbs | 1170 Cft | 48058 lbs |
| 5.867 m | 6.058 m | 2.35 m | 2.591 m | 2.33 m | 2.438 m | 2.261 m | 2.286 m | 2200 kgm | 33.2 Cum | 21800 kgm |

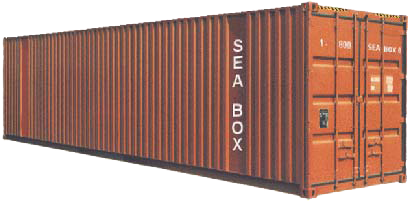

| 40 ft. Conventional End Opening Container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Height | Width | Door Opening | Tare | Volumetric | Maximum | ||||
| Inside | Outside | Inside | Outside | Inside | Outside | Height | Width | Weight | Capacity | Cargo |
| 39' 5" | 40' 0" | 7' 10" | 8' 6" | 7' 8" | 8' 0" | 7' 6" | 7' 8" | 8200 lbs | 2389 Cft | 59000 lbs |
| 11.998 m | 12.192 m | 2.35 m | 2.591 m | 2.33 m | 2.438 m | 2.261 m | 2.286 m | 3720 kg | 67.60 Cum | 26760 kgm |

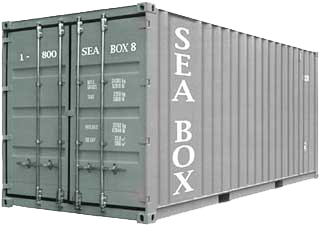

| 20 ft. High Cube End Opening Container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Height | Width | Door Opening | Tare | Volumetric | Maximum | ||||
| Inside | Outside | Inside | Outside | Inside | Outside | Height | Width | Weight | Capacity | Cargo |
| 19' 4" | 19' 10" | 8' 10" | 9' 6" | 7' 8" | 8' 0" | 8' 6" | 7' 8" | 5290 lbs | 1320 Cft | 47610 lbs |
| 5.867 m | 6.058 m | 2.70 m | 2.9 m | 2.33 m | 2.438 m | 2.58 m | 2.286 m | 2400 kgm | 39.6 Cum | 21600 kgm |

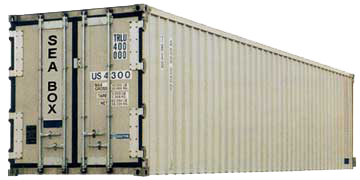

| 40 ft. High Cube End Opening Container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Height | Width | Door Opening | Tare | Volumetric | Maximum | ||||
| Inside | Outside | Inside | Outside | Inside | Outside | Height | Width | Weight | Capacity | Cargo |
| 39' 5" | 40' 0" | 8' 10" | 9' 6" | 7' 8" | 8' 0" | 8' 6" | 7' 8" | 8800 lbs | 2693 Cft | 58400 lbs |
| 11.998 m | 12.192 m | 2.70 m | 2.9 m | 2.33 m | 2.438 m | 2.58 m | 2.286 m | 4000 kg | 76.3 Cum | 26480 kgm |
| 22 ft. High Cube End Opening Container | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Height | Width | Door Opening | Tare | Volumetric | Maximum | ||||
| Inside | Outside | Inside | Outside | Inside | Outside | Height | Width | Weight | Capacity | Cargo |
| 22' 0" | 8' 10" | 9' 6" | 7' 8" | 8' 0" | 8' 6" | 7' 8" | 1350 Cft | 67200 lbs | ||
| 6.71 m | 2.70 m | 2.9 m | 2.33 m | 2.438 m | 2.58 m | 2.343 m | 40 Cum | 30480 kgm | ||
